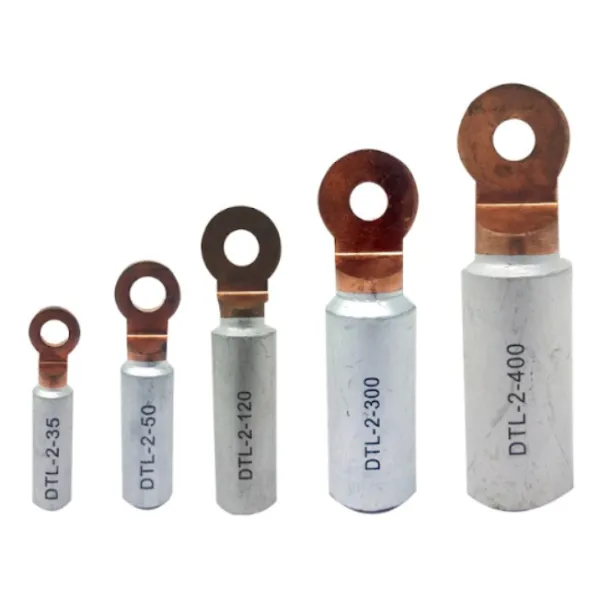

Electrical systems sometimes require aluminium conductors to terminate at equipment with copper connection points. Connecting dissimilar metals without considering their characteristics can create long-term reliability concerns. Bimetallic lugs are designed for applications where a transition between aluminium and copper is required.
For electrical contractors, distribution-panel builders, and industrial installers, understanding when these lugs are appropriate helps prevent unsuitable material combinations at critical termination points.
Why Dissimilar Metal Connections Need Attention
Copper and aluminium behave differently as electrical conductor materials.
When an installation requires an aluminium cable to connect to a copper terminal, simply using any available lug may not be appropriate.
A purpose-designed bimetallic lug provides separate material regions suited to the conductor and equipment connection requirements.
Where Bimetallic Lugs May Be Used
Common applications can include:
- Power distribution panels
- Electrical switchboards
- Industrial power systems
- Transformer-related connections
- Distribution equipment
- Commercial electrical installations
- Infrastructure projects
- Heavy electrical systems
The actual suitability depends on cable size, equipment terminals, current requirements, and project specifications.
Confirm Both Ends of the Connection
Selecting a bimetallic lug requires checking more than conductor size.
Installers should identify:
- Aluminium conductor size
- Terminal material
- Stud or bolt diameter
- Palm dimensions
- Barrel dimensions
- Required crimping method
- Installation conditions
This prevents a situation where the barrel fits the cable but the palm does not suit the equipment terminal.
Crimping Requires Suitable Equipment
The aluminium conductor side needs to be terminated using the correct crimping procedure and compatible tooling.
For larger conductors, hydraulic crimping tools are commonly relevant. The appropriate die should be selected according to the lug and conductor specifications.
Technicians should avoid assuming that achieving visible compression is enough. A proper termination depends on controlled preparation and compatible components.
Preparation Influences Connection Quality
The conductor should be stripped carefully without unnecessarily damaging strands.
It should then be inserted correctly into the designated barrel. Installation practices should follow the applicable manufacturer or project requirements, particularly for aluminium conductor preparation.
The lug palm should sit properly against the equipment terminal before final tightening.
Inspect Before Commissioning
Electrical contractors can incorporate a simple termination inspection into panel commissioning.
Check for incorrect crimp positions, exposed conductor, physical lug damage, loose hardware, unsuitable bends, or excessive mechanical stress on the connection.
Thermal inspection during appropriate maintenance programmes can also help identify abnormal heating in operating electrical connections.
Supplier Selection Should Focus on Technical Suitability
Industrial buyers often source cable accessories in bulk, particularly for distribution and infrastructure projects. Product dimensions and specifications should therefore remain consistent with project requirements.
In Delhi's electrical market, Dollex Control Panel Accessories serves panel builders, contractors, OEMs, and industrial customers requiring electrical accessories for varied applications.
When purchasing bimetallic lugs, buyers should provide accurate conductor and terminal information rather than requesting a product based only on a broad cable description.
A bimetallic termination is a relatively small part of an electrical installation, but it performs an important transition between two conductor materials. Correct component selection, crimping, surface preparation, and installation can help make that transition more dependable.
