LUMINOUS PUSH BUTTONS

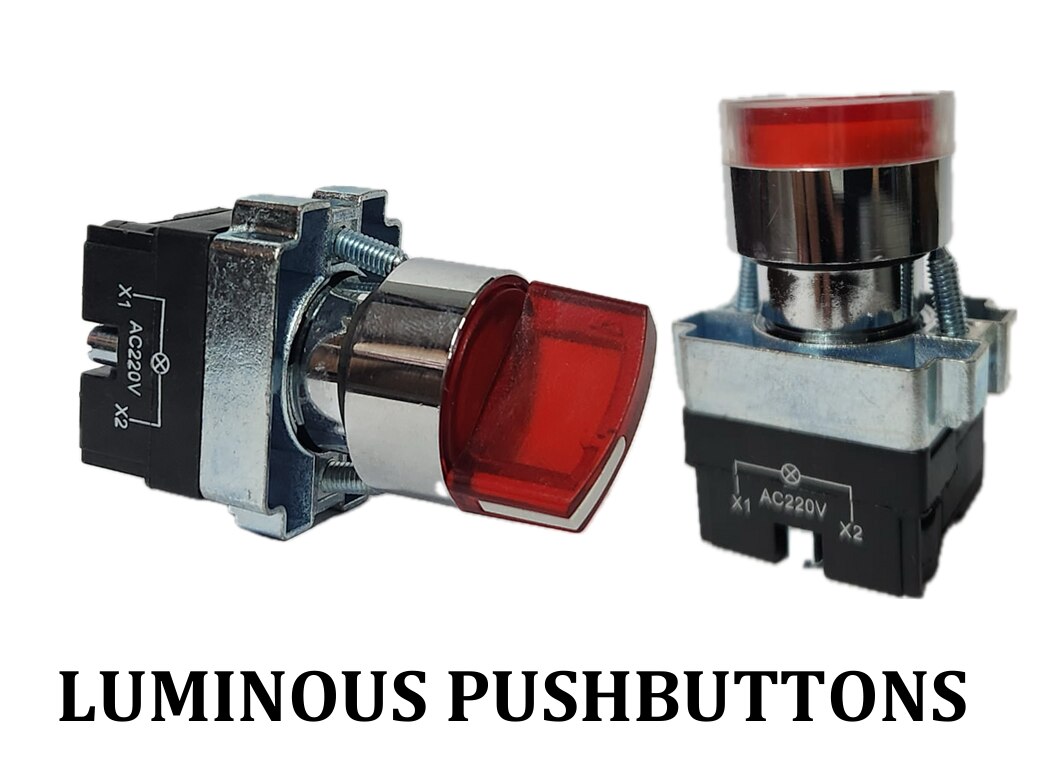

Luminous Push Button – Dollex Control Panel Accessories

Product Overview:

The Luminous Push Button from Dollex Control Panel Accessories combines ergonomic design, visual clarity, and robust functionality in one compact unit. Specially engineered for environments where visual indication is critical, this illuminated push button enhances operational safety and efficiency by providing instant status feedback through built-in lighting.

Ideal for control panels, industrial machinery, and automated systems, this push button is available in a variety of voltages, colors, and contact configurations to suit diverse applications. Whether you're signaling "Start/Stop," "Power On," or any custom function, Dollex Luminous Push Buttons bring light and logic together for seamless control.

Key Features:

Built-In Illumination

Equipped with high-brightness LED or filament bulbs, the button provides clear visual indication of system status. Illumination can be configured to signal when a function is active, inactive, or requires attention.

Durable Construction

Built with industrial-grade materials and a resilient lens cover, the button is resistant to dust, moisture, and mechanical impact. Ideal for tough industrial environments and long-term reliability.

Standard 22.5MM Mounting Size

Compatible with industry-standard 22.5mm panel cutouts, it integrates easily into new installations or retrofitted control panels with minimal effort.

Available in Multiple Colors

Choose from Red, Green, Yellow, Blue, White, and Amber to match international signaling standards or user-defined logic. Each color supports quick operator identification and reduces the risk of operational errors.

Modular Design

The luminous push button supports interchangeable contact blocks and bulb modules, simplifying installation, maintenance, and customization.

Wide Voltage Range

Available with multiple voltage options—12V, 24V, 110V, 220V, and 440V—to accommodate different circuit requirements, both AC and DC.

Smooth & Reliable Operation

Engineered with precision for consistent tactile feedback and a long mechanical life. Supports both momentary (spring return) and maintained (stay-put) action types.

Technical Specifications:

Mounting Hole Diameter: 22.5mm

Contact Rating: Up to 10A / 440V AC

Illumination Type: LED or Filament (model specific)

Contact Type: NO / NC / Combination

Voltage Range: 12V to 440V (AC/DC)

Protection Grade: Up to IP65 (front side)

Operating Temperature: -25°C to +70°C

Terminal Type: Screw clamp or spring type (based on variant)

Applications:

Control Panels

Process Automation

Machine Tools

Power Distribution Boards

HVAC Systems

Motor Starters and Control Stations

Packaging and Assembly Equipment

Why Choose Dollex Luminous Push Button?

Dollex is known for delivering superior-quality control panel accessories that meet the demands of modern automation and control systems. The Luminous Push Button not only simplifies user interaction with machines but also improves visual monitoring and operator safety. Designed to be functional, durable, and aesthetically clean, it’s a smart investment for any industrial or commercial control application.

Backed by trusted engineering, competitive pricing, and nationwide support, Dollex brings light to your control strategy—literally.
